Introduction:
Sand Washer is used for cleaning and removing the dirt and contamination mixed in sandstones. It features of novel sealing structure, adjustable overflow weir and reliable transmission system, which ensures washing and dehydrating efficiently. It has been widely used in roads, water conservancy, construction, etc.
Features:
Novel sealing structure
Adjustable overflow weir
Reliable transmission system
Technical Parameters:

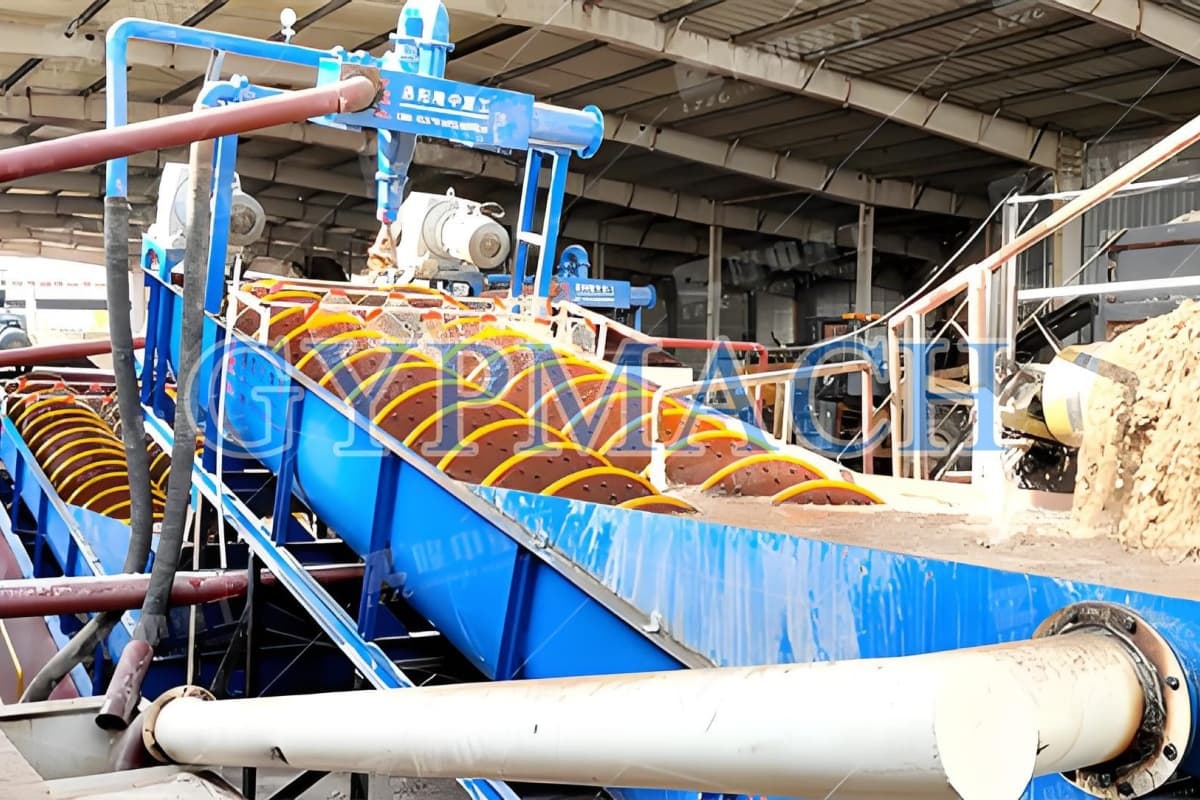

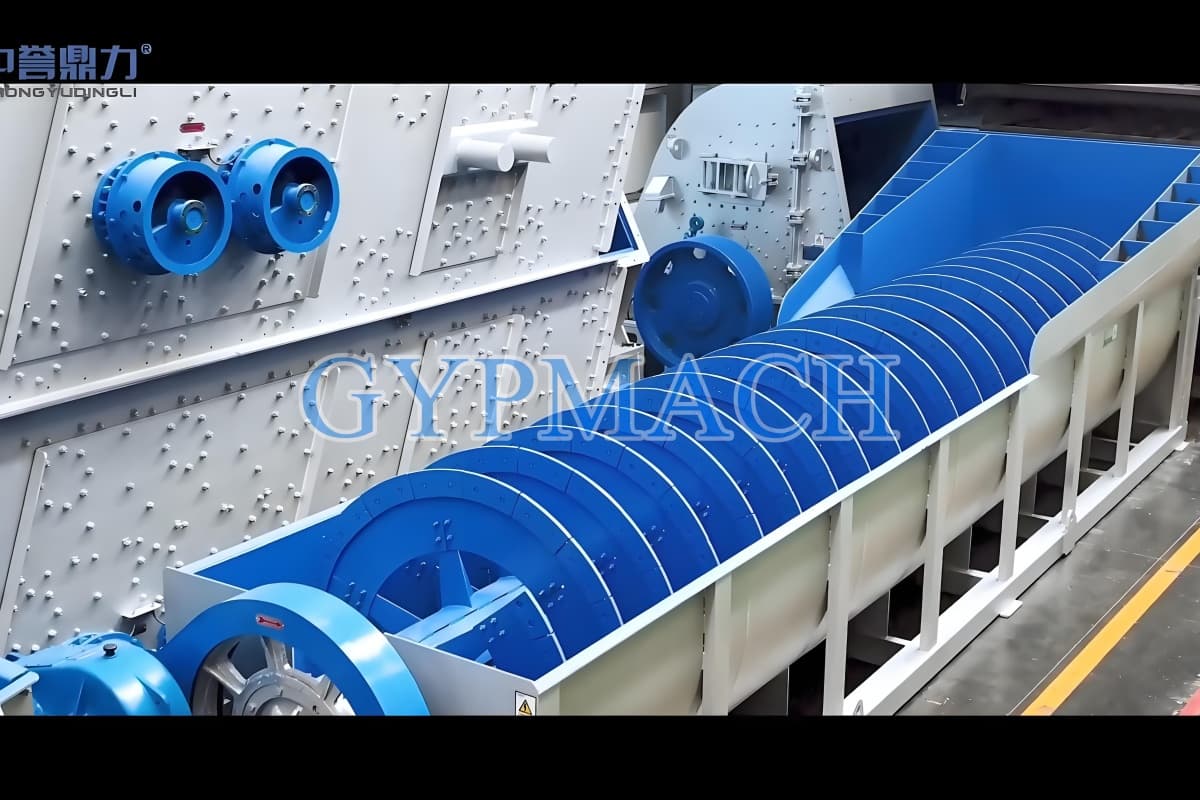

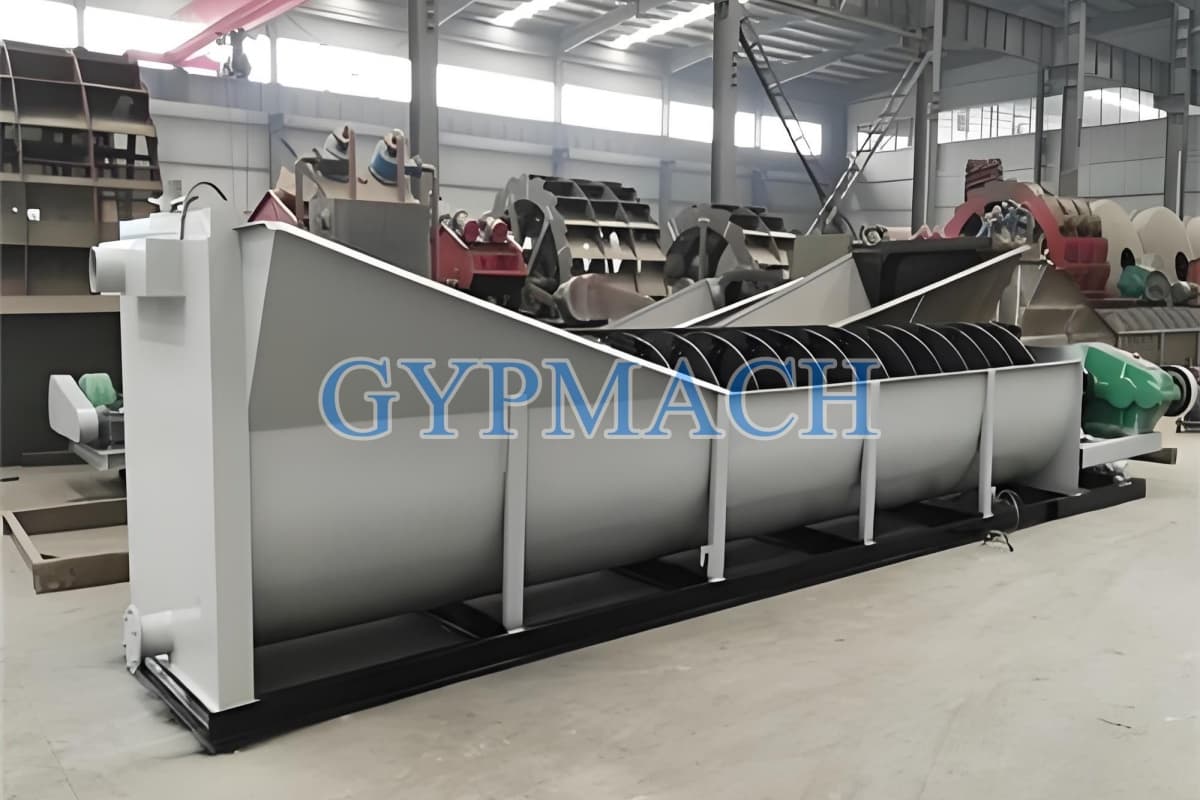

LSX Screw Type Sand Washer
LSX Series Sand Washing Machine can clean and separate stone powder and clay in sand and stone. Its novel sealing structure and reliable transmission device ensure the effect of cleaning and dewatering. It is an efficient sand washing equipment used with sand making machine. LSX Series Sand Washing Machine has two kinds of single-spin and double-spin, with high cleanliness, reasonable structure, large capacity, low power consumption, sand loss in the process of sand washing, especially the drive parts of sand washing machine are separated from water and sand, so its failure rate is much lower than the commonly used sand washing machine, is the best choice for upgrading the sand washing industry.
Model | LSX-920 | 2 LSX -920 | LSX -1120 | 2 LSX -1120 |
No. of Screw
(pcs) | 1 | 2 | 1 | 2 |
Screw
Diameter
(mm) | 915 | 915 | 1115 | 1115 |
Tub
Length
(mm) | 7585 | 7585 | 9782 | 9782 |
Max.
Feeding Size
(mm) | ≦10 | ≦10 | ≦10 | ≦10 |
Capacity
(t/h) | 100 | 200 | 175 | 350 |
Screw Speed
(rpm) | 21 | 21 | 17 | 17 |
Motor Power
(kw) | 11 | 11*2 | 15 | 15*2 |
Water
Consumption
(t/h) | 10-80 | 20-160 | 20-150 | 40-300 |
Weight
(t) | 6.3 | 11.1 | 10.2 | 17.9 |
Overall Dimension(mm) | 8420*2950*3960 | 8420*3765*3960 | 10970*3945*4720 | 10970*5250*4720 |

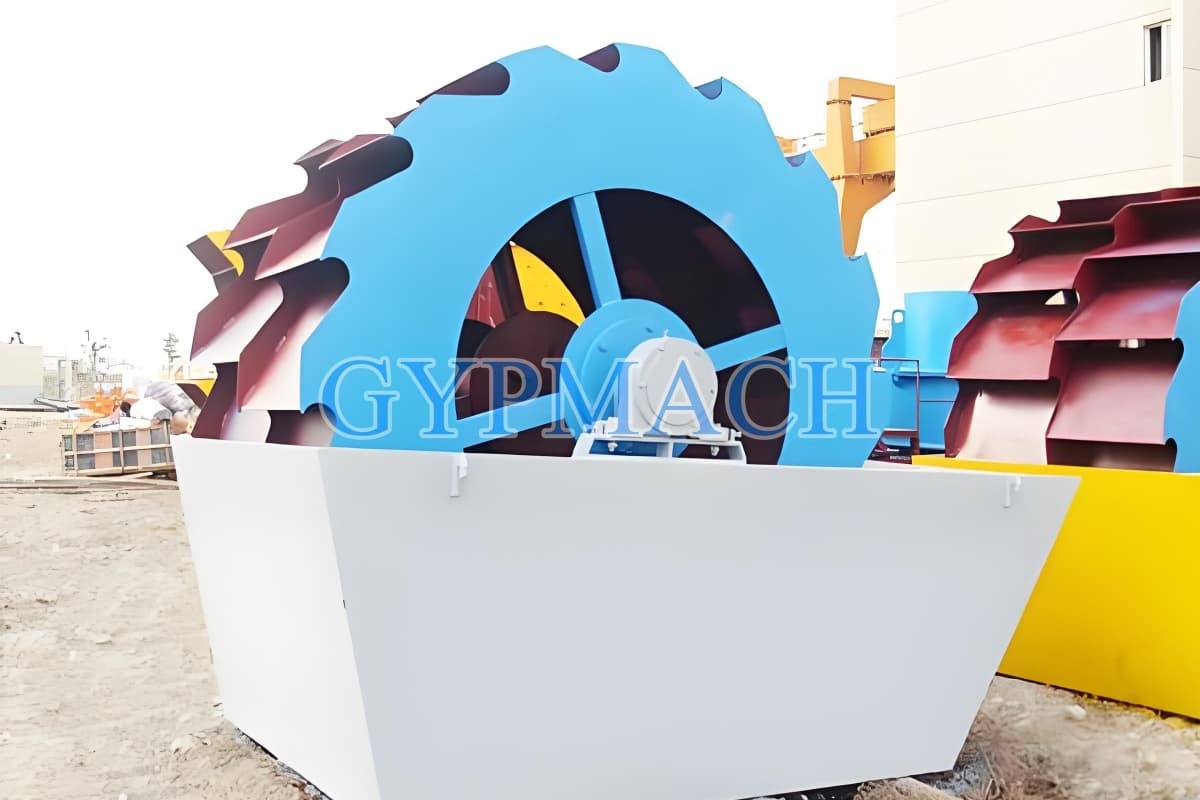

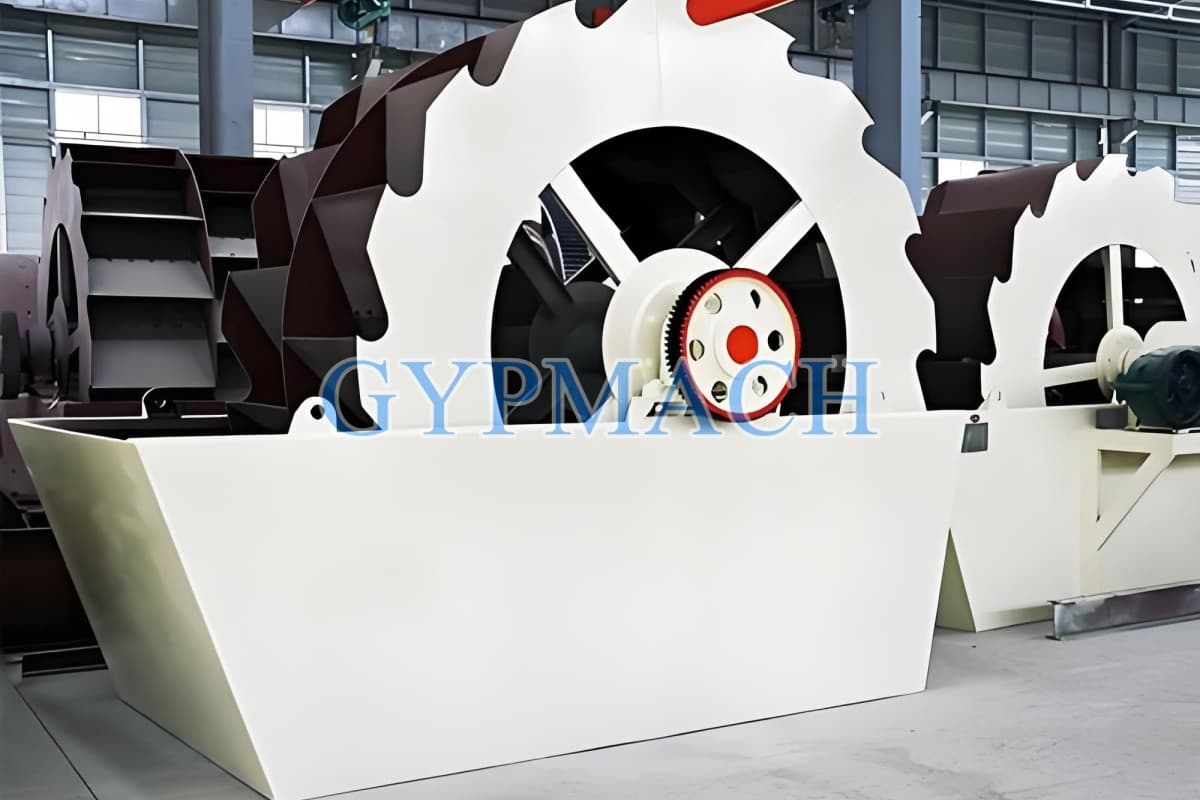

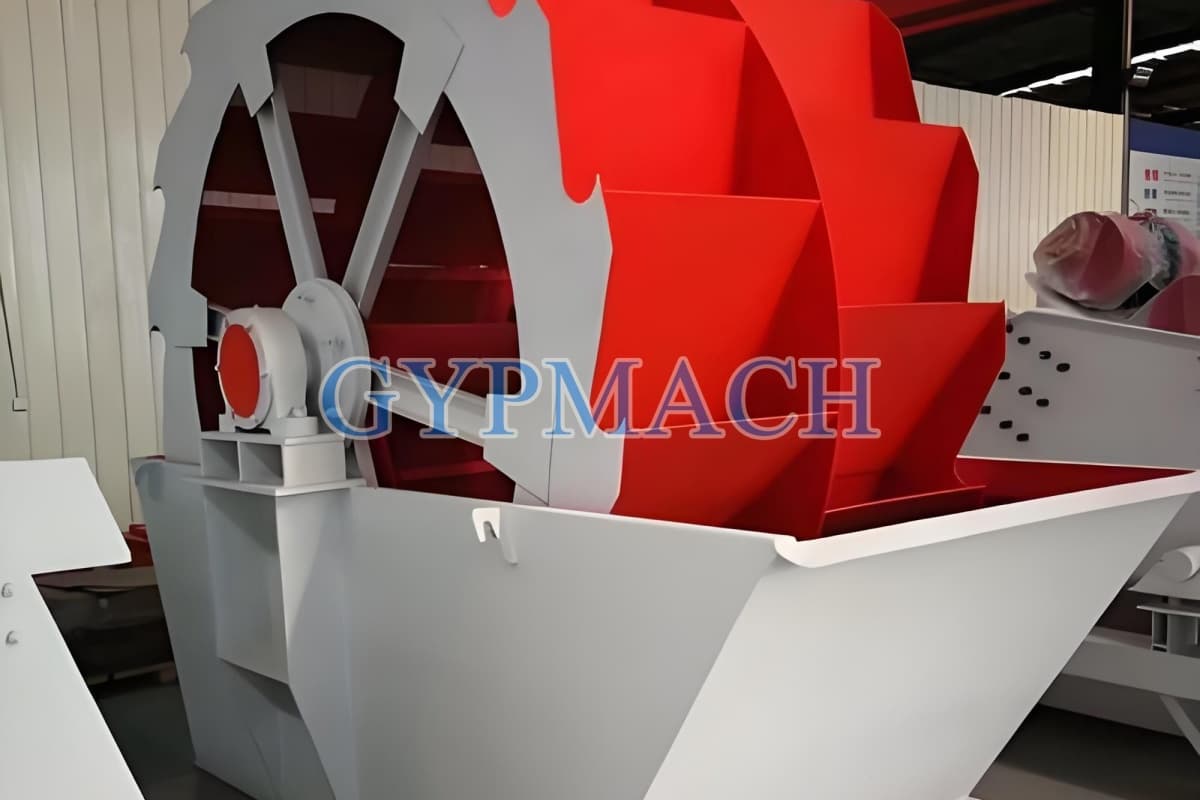

XSD Wheel Type Sand Washer
The transmission part of XSD Sand Washing Machine is separated from water and sand, and the failure rate is much lower than other sand washing machines. Its novel sealing structure and reliable transmission device ensure the effect of cleaning and dewatering. It has the characteristics of reasonable structure, large capacity and low power consumption. It is an ideal sand washing equipment in sand and stone industry. XSD Series Sand Washing Machine produced by our company is a wheel-bucket type washing equipment, which can clean and separate the stone powder and clay in the sand and stone. It is an efficient sand washing equipment used with sand making machine.
Model | XSD2610 | XSD2816 | XSD3016 | XSD3620 |
Diameter
of Impeller
(mm) | 2600 | 2800 | 3000 | 3600 |
Feeding Size (mm) | ≤10 | ≤10 | ≤10 | ≤10 |
Capacity (t/h) | 20~50 | 30~60 | 70~120 | 60~150 |
Power (kW) | 7.5 | 11 | 15 | 18.5 |
Water Requirement(t/h) | 10-30 | 10-40 | 10-60 | 20-110 |
Weight(t) | 2.7 | 5.5 | 6.1 | 9.7 |
Dimension (L*W*H)(mm) | 3254*2060*2622 | 3810*2820*2883 | 3810*2820*3083 | 4456*2479*3688 |
Note: Specifications are subject to change without further notice.
