Introduction:

The regular paper-faced gypsum board, also known as gypsum board, drywall, or plasterboard, is a common building material. It consists of a gypsum core and two layers of paper facing.

GYPMACH has been committed to the development and manufacturing of gypsum board equipment since 1998, which offers qualified products and professional services to customers from all over the world. Services we offer are as follows:

1> Customized complete plasterboard plant, production power from 2 million m2/year to 50 million m2/year. Also offers various devices according to your needs;

2>Improve or exchange customer’s devices with problem according to customer’s requirement;

3>Consulting and technical improving service on your existing plants, to improve production quality and save cost;

4>We offer a complete plasterboard plant production management and maintenance service if you lack operation and management personnel, to achieve better economic benefit for you;

5>Plasterboard factory designing and planning service;

6>We can offer you the best formula by analyzing the materials you use to produce plasterboard, to ensure quality of the products.

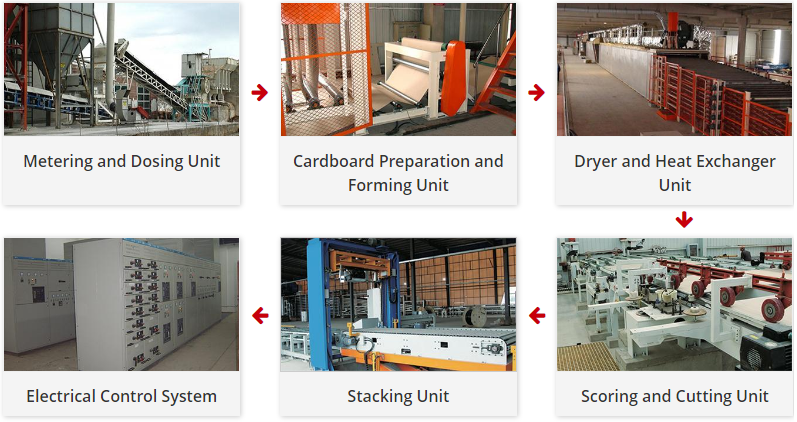

Paper-faced Gypsum Board Production Process:

Our gypsum board production plant consists of multiple units which are responsible for several processes, controlled by integrated controlling system. Units as follows:

Features of our Paper-faced Gypsum Board Production Line:

1>Unique impeller feeder and accurate electronic belt weigh ensures the reliability of gypsum powder feeding;

2>PLC system featuring centralized control and data sharing, able for monitoring and adjusting every procedure on production line, to ensure normal running.

3>Drying system applies horizontal-vertical hot air circulation structure to ensure plasterboards are heated evenly.

4> Self-developed new-type mixer, which is able to prevent slurry from caking, an is energy-saving.

Regular Sizes of Paper-faced Gypsum Board:

Length: 1.2m-4m
Width: 1.2-1.4m
Thickness: 9mm-25mm (Customizable)

Consumption of Raw Material (Take 9.5mm thickness board production plant for example)：
