Introduction

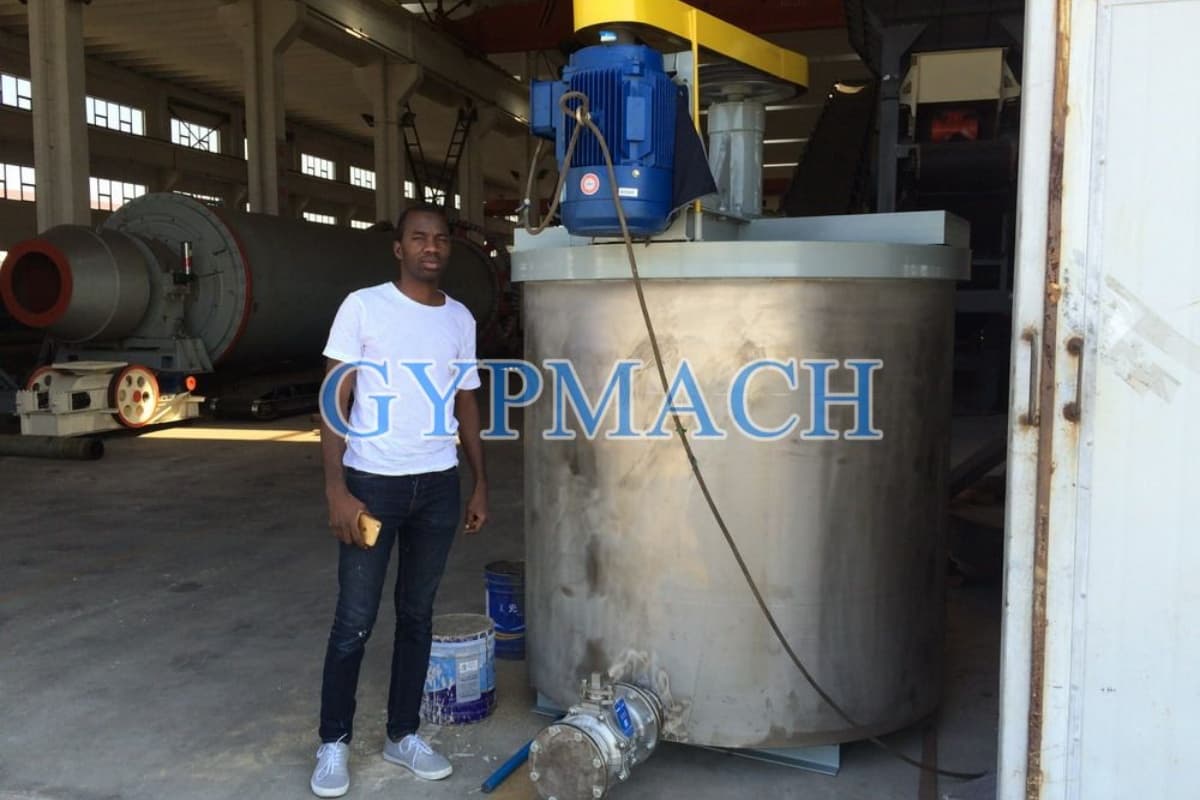

The mixing bucket is a necessary equipment driven by the motor V-belt instead of the rotating impeller to fully mix the medicine and pulp evenly, increase the reaction time of the medicine and strengthen the quality of the drug reaction. This machine is suitable for mineral processing and can also be used for mixing in various chemical industries.

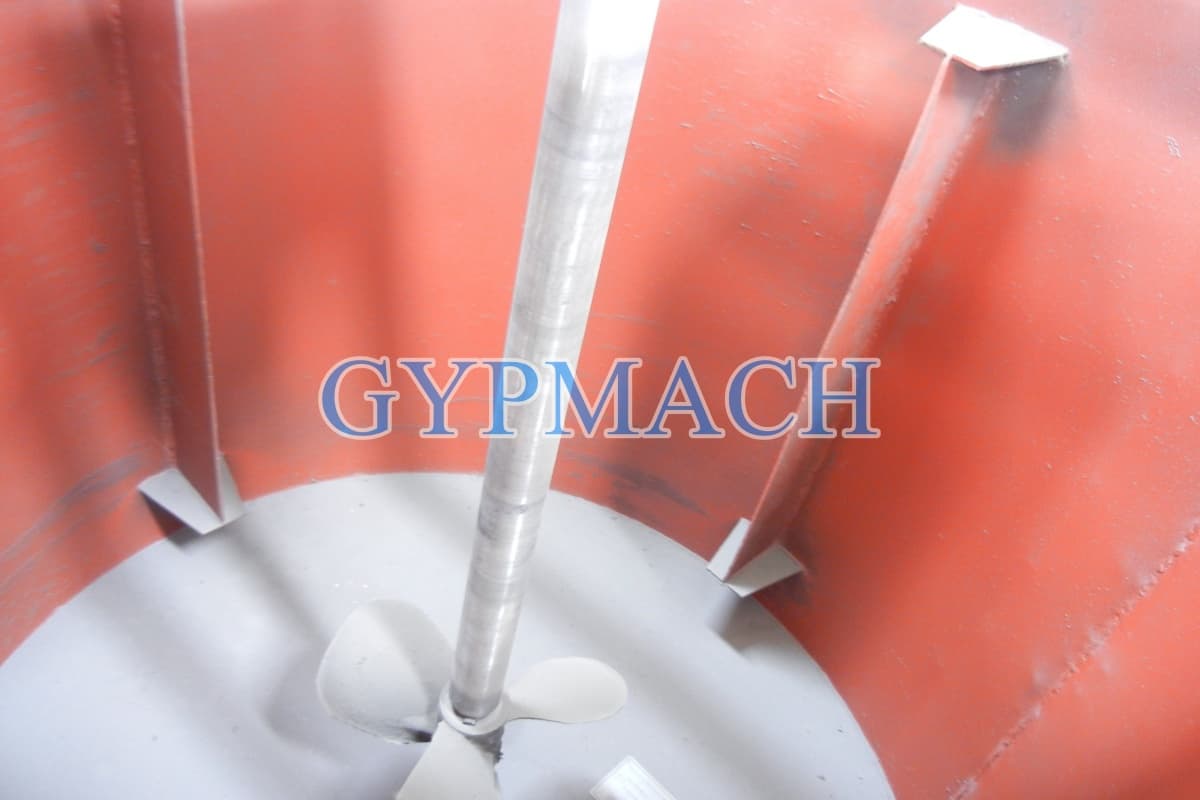

The mixing drum is suitable for all kinds of metal ores, mainly used for mixing before flotation. It is the full mixing of reagent and pulp, and can also be used for the mixing of other non-metallic minerals. It is used in fixed components with a concentration of no more than 30% (by weight), and the particle size is less than 1mm. It is in the form of flat bottom barrel radiation circulation spiral impeller mechanical stirring type.
Technical data
Model | Internal Diameter (mm) | Internal height
(mm) | Volume
(m³) | Power
(kW) | Dimension
(L×W×H) (mm) | Weight
(t) |
XB500 | 500 | 500 | 0.1 | 1.1 | 680×600×1100 | 0.25 |
XB750 | 750 | 750 | 0.33 | 1.5 | 900×820×1400 | 0.5 |
XB1000 | 1000 | 1000 | 0.79 | 1.5-2.2 | 1200×1200×1600 | 0.8 |
XB1200 | 1200 | 1200 | 1.4 | 3-4 | 1300×1300×1800 | 1.1 |
XB1500 | 1500 | 1500 | 2.7 | 5.5-7.5 | 1650×1650×2360 | 1.2 |
XB2000 | 2000 | 2000 | 6.3 | 5.5-7.5 | 2200×2180×2980 | 1.6 |
XB2500 | 2500 | 2500 | 12 | 11-15 | 3780×2700×3420 | 3.5 |
XB3000 | 3000 | 3000 | 21 | 18.5-22 | 3600×3400×4150 | 4.6 |
XB3500 | 3500 | 3500 | 34 | 22-30 | 4200×3480×4750 | 7.3 |
XB4000 | 4000 | 4000 | 50 | 30-37 | 4600×4400×5100 | 10 |
