Introduction:
Dewatering Screen is mainly used in the dehydration of coarse, middle, and fine particles. Our dewatering screens offer multiple advantages for construction and specialty aggregates producers including a drier, drip-free product that other types of equipment cannot provide.
There are many applications for Dewatering Screens in the aggregates market including dewatering after Sand Classifying Tanks and Fine Material Screw Washers, or use within a system such as the Recipe Sand Plant.
Technical Parameters:
Model | Vibration frequency
(r/min) | Screen
Mesh Size
(mm) | Capacity
(t/h) | Power
(kW) | Overall dimension
(mm) | Weight
(t) |

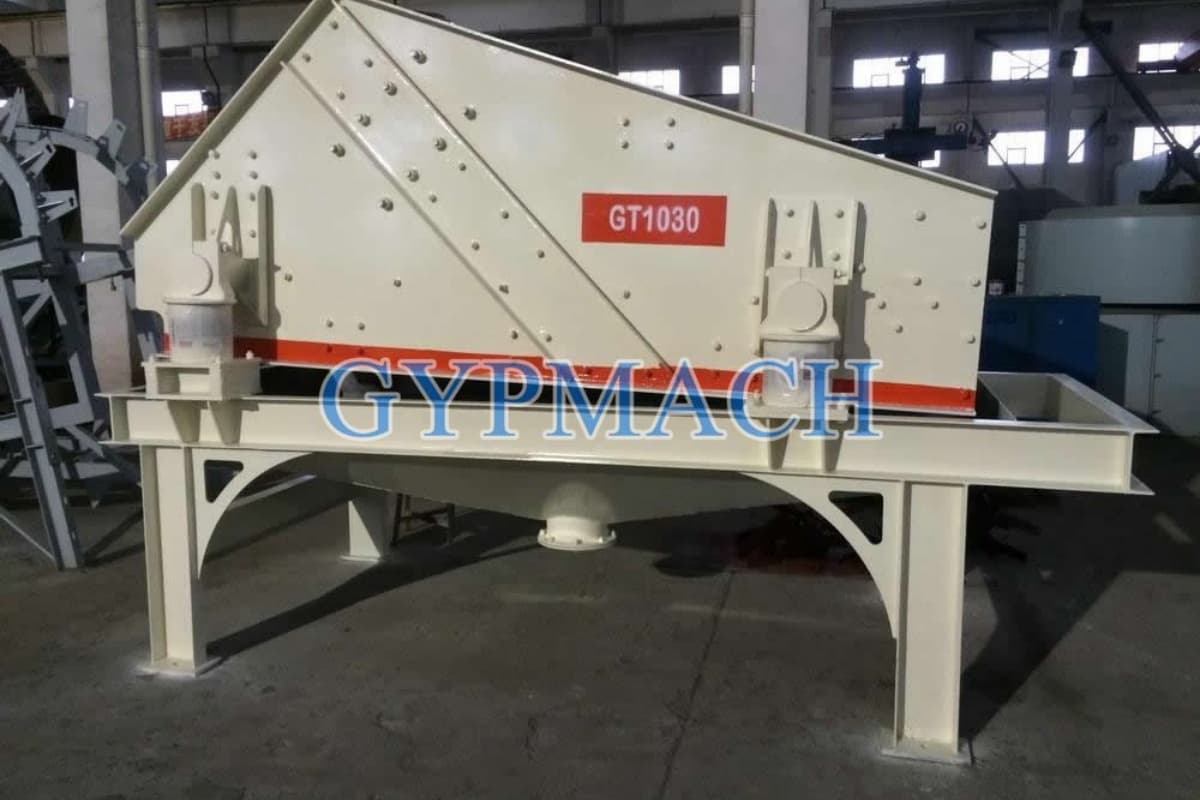

GT1030 | 1450 | 0.1-2 | 10-30 | 2×1.5 | 3440×1680×2310 | 2.4 |
GT1230 | 1450 | 0.1-2 | 15-45 | 2×1.5 | 3440×1880×2310 | 2.6 |
GT1530 | 1450 | 0.1-2 | 20-60 | 2×2.25 | 3440×2180×2400 | 3 |

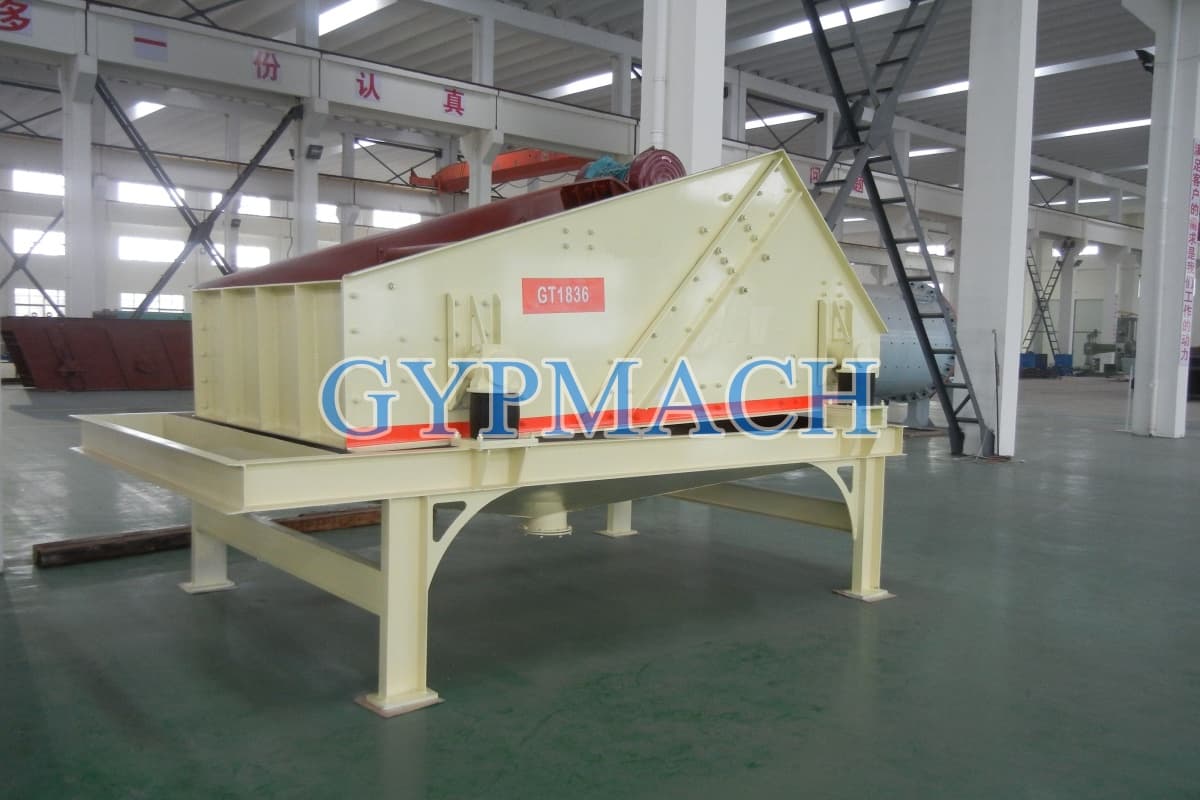

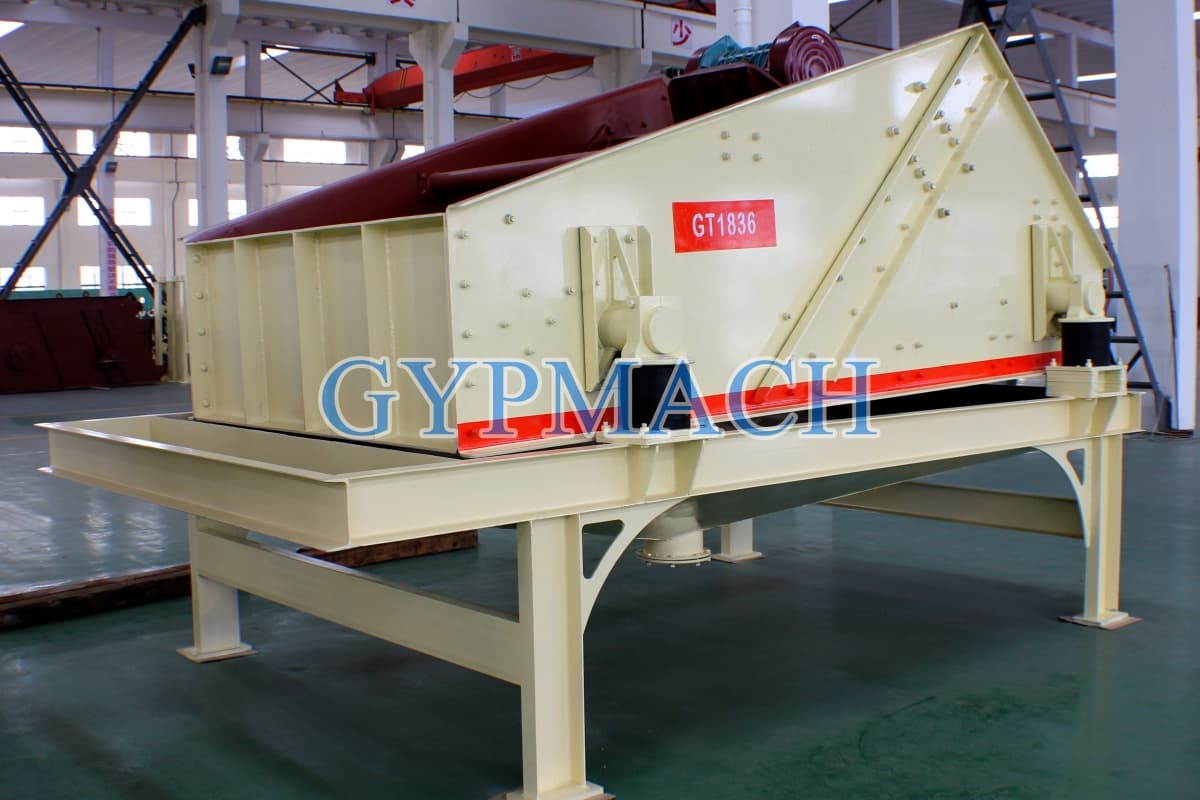

GT1836 | 1455 | 0.1-2 | 30-80 | 2×3.7 | 4140×2480×2530 | 4 |
