Introduction:

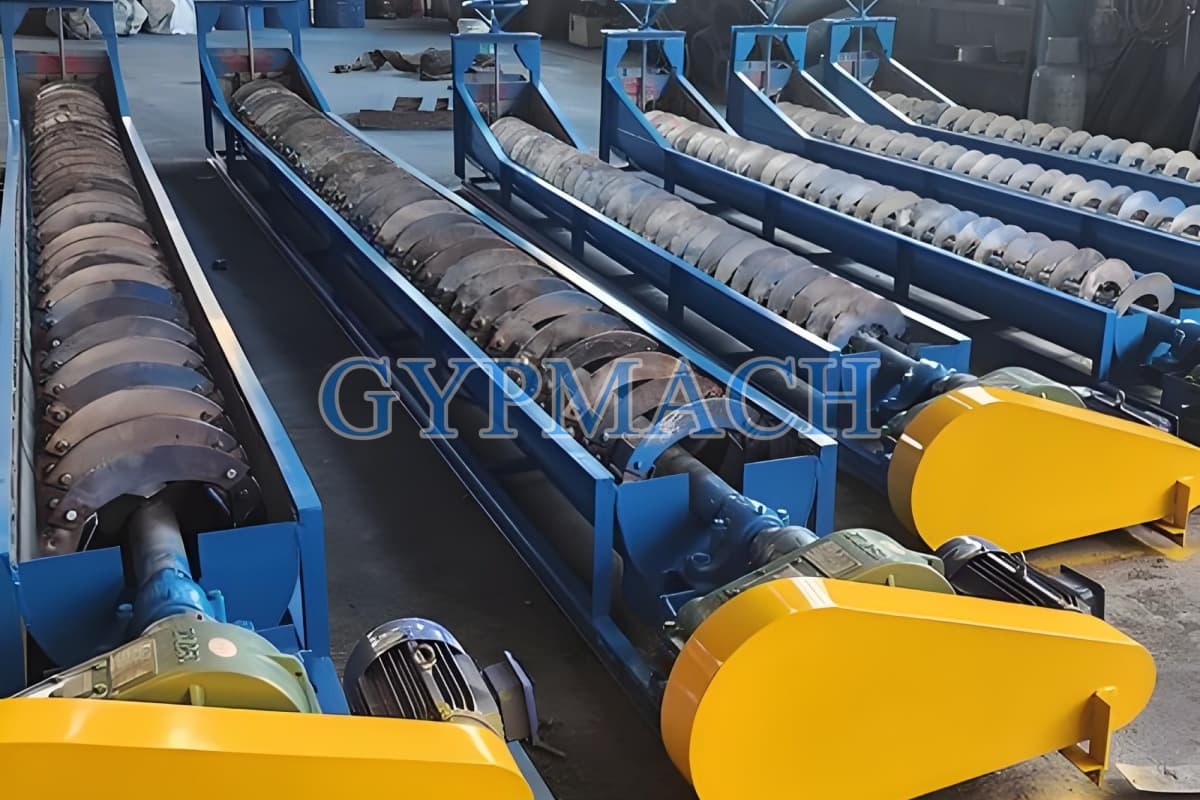

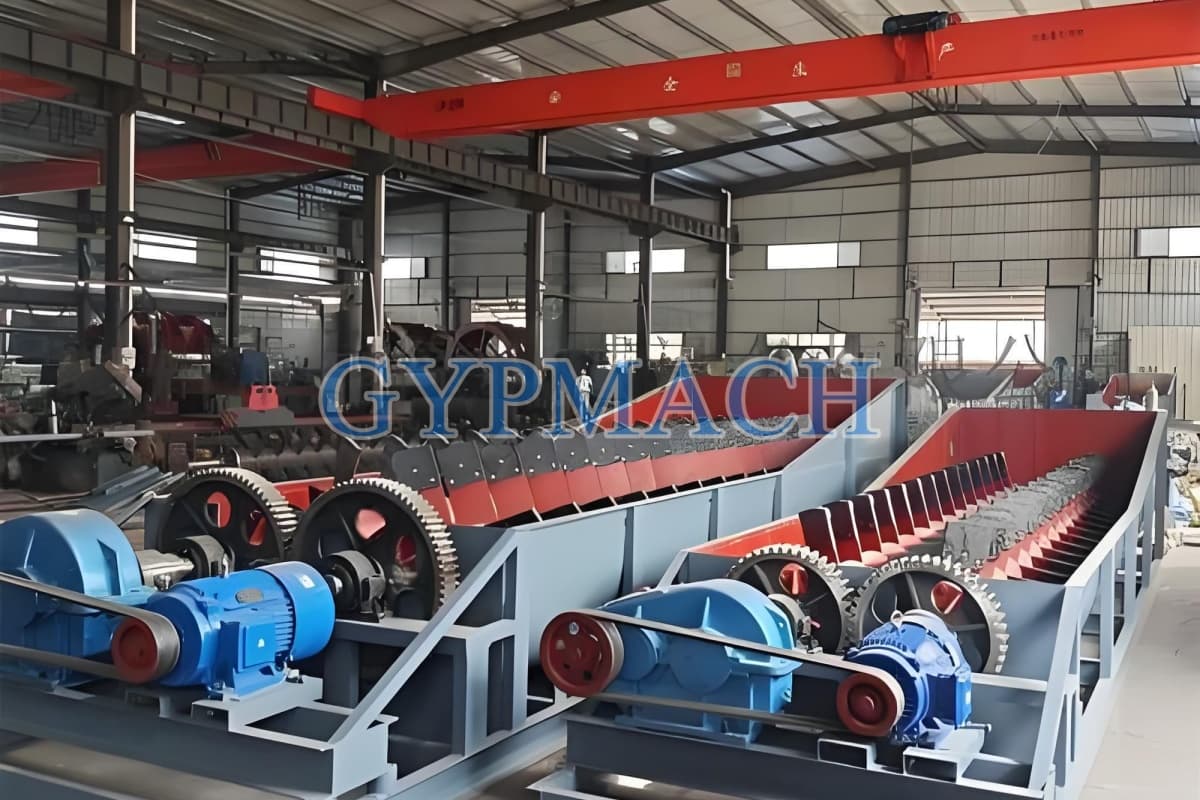

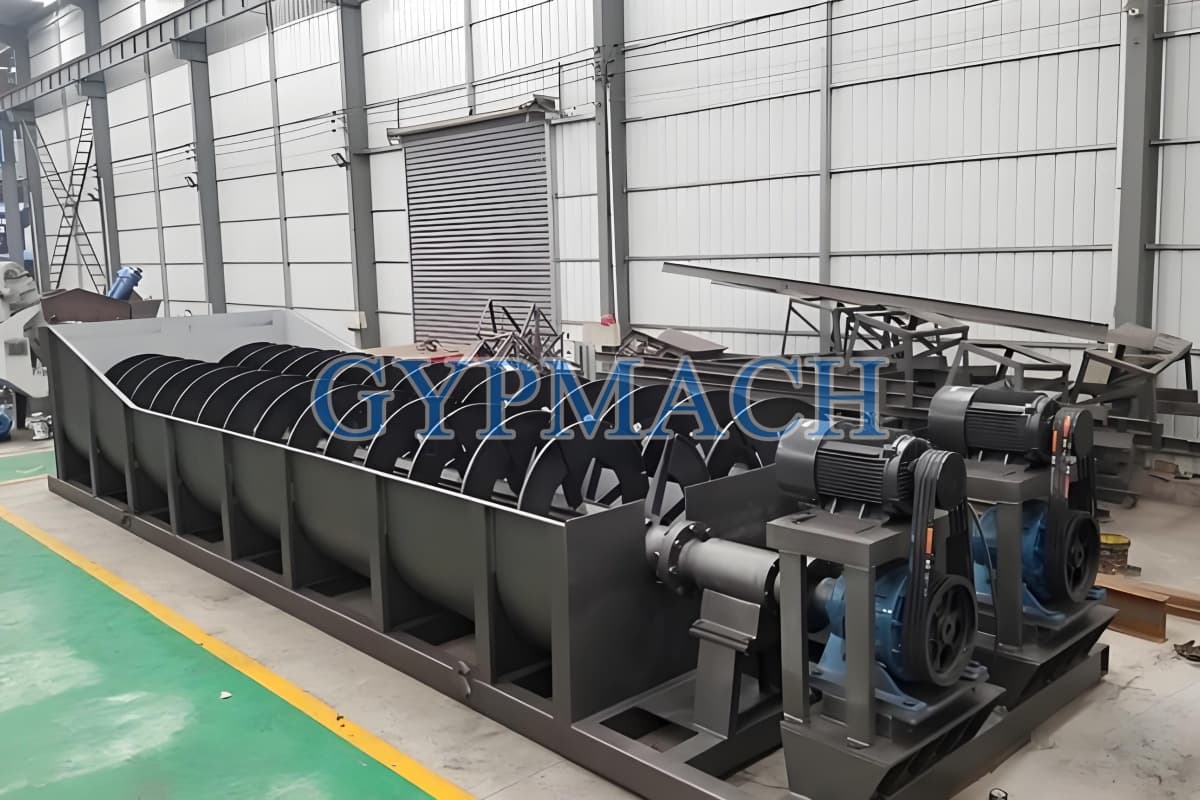

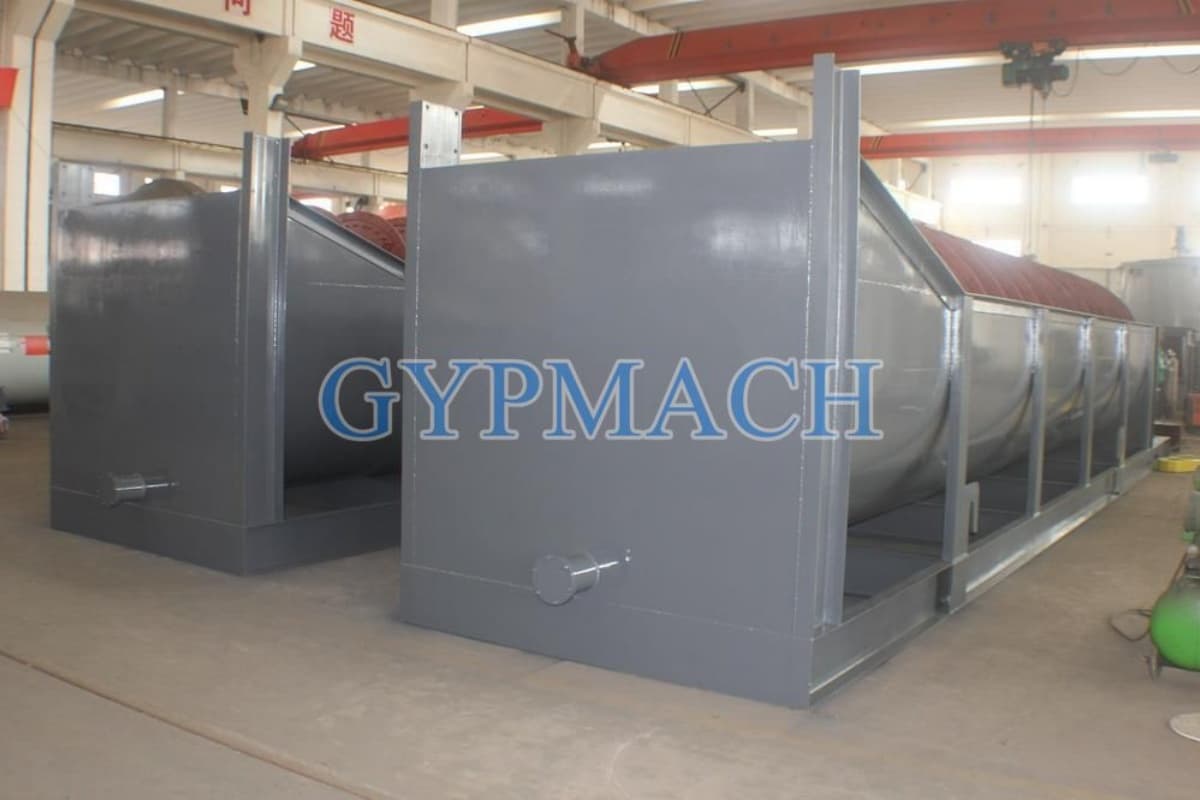

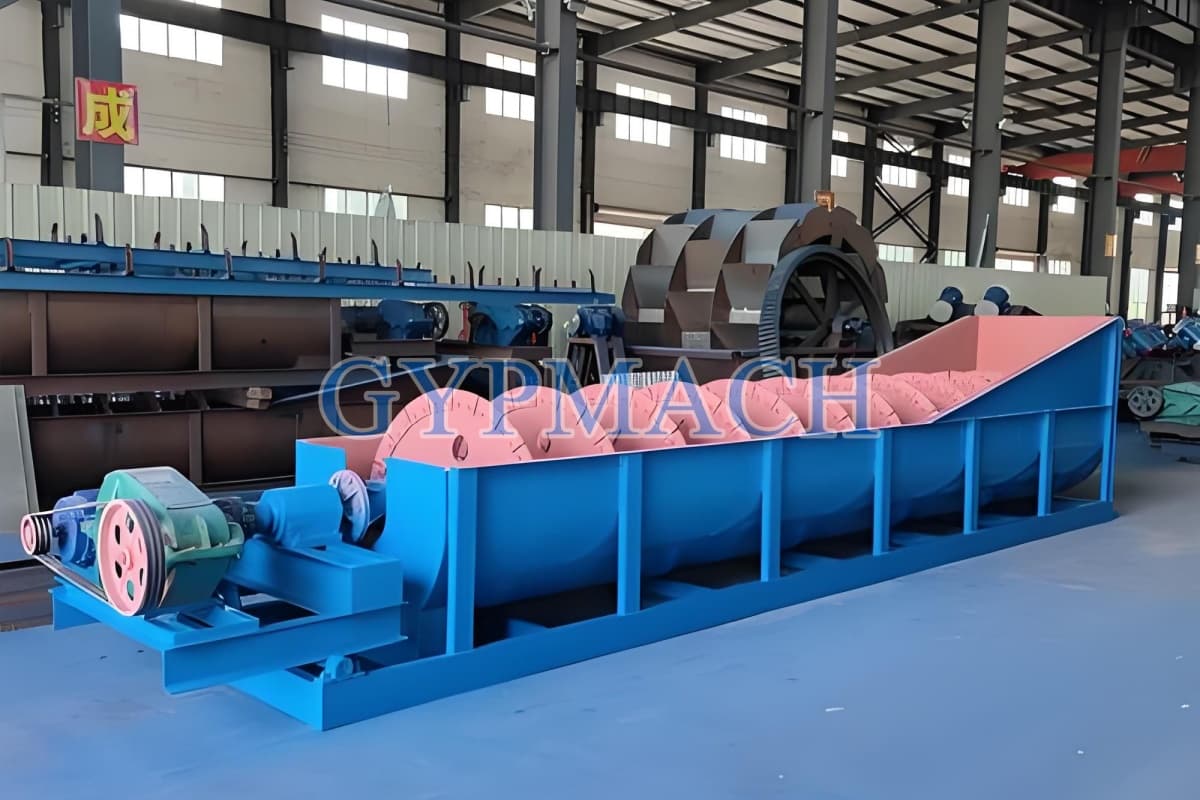

A Spiral Classifier is a machine that is primarily used to classify the slimes (fines) from a coarser, sandy sized material. It has an inclined trough with one or two spirals revolving slowly and free from touching the sides or bottom of the tank.
In Mineral Processing, the SPIRAL Classifier on the other hand is rotated through the ore. It doesn’t lift out of the slurry but is revolved through it. The direction of rotation causes the slurry to be pulled up the inclined bed of the classifier in much the same manner as the rakes do. As it is revolved in the slurry the spiral is constantly moving the coarse backwards the fine material will flow over the top and be travelling fast enough to be able to work its way downwards to escape.
Technical parameters：
Model | Spiral dia (mm) | Trough length (mm) | Spiral speed (r/min) | Power（kW） | Dimension-L×W×H (mm) | Weight.
(t) |
FLG0545 | 500 | 4500 | 8-12.5 | 1.1 | - | 5430×680×1480 | 1.6 |
FLG0755 | 750 | 5500 | 6-10 | 3 | - | 6270×980×1820 | 2.7 |
FLG1065 | 1000 | 6500 | 5-8 | 5.5 | - | 7590×1240×2380 | 4 |
FLG1085 | 1000 | 8500 | 5-8 | 7.5 |
| 9600×1240×2680 | 6 |
FLG1265 | 1200 | 6500 | 4-6 | 7.5 | 2.2 | 8180×1570×3110 | 8.5 |
FLG1285 | 1200 | 8500 | 4-6 | 7.5 | 2.2 | 10370×1540×3920 | 11 |
2FLG1265 | 1200 | 6500 | 4-6 | 15 | 4.4 | 8230×2790×3110 | 15.8 |
2FLG1285 | 1200 | 8500 | 4-6 | 15 | 4.4 | 10370×2790×3920 | 17.6 |
FLG1585 | 1500 | 8500 | 4-6 | 7.5 | 2.2 | 10410×1880×4080 | 12.5 |
FLG15105 | 1500 | 10500 | 4-6 | 7.5 | 2.2 | 12670×1820×4890 | 16.8 |
2FLG1585 | 1500 | 8500 | 4-6 | 15 | 4.4 | 10410×3390×4080 | 22.1 |
2FLG15105 | 1500 | 10500 | 4-6 | 15 | 4.4 | 12670×3370×4890 | 30.7 |
FLG2085 | 2000 | 8500 | 3.6-5.5 | 11 | 3 | 10790×2530×4490 | 20.5 |
FLG20125 | 2000 | 12500 | 3.6-5.5 | 15 | 3 | 15610×2530×5340 | 28.5 |
2FLG2085 | 2000 | 8500 | 3.6-5.5 | 22 | 6 | 11000×4600×4490 | 35.5 |
2FLG20125 | 2000 | 12500 | 3.6-5.5 | 30 | 6 | 15760×4600×5640 | 48.7 |
FLG2495 | 2400 | 9500 | 3.67 | 15 | 3 | 11650×2910×4970 | 25.7 |
FLG24140 | 2400 | 14000 | 3.67 | 18.5 | 4 | 16580×2930×7190 | 41 |
2FLG2495 | 2400 | 9500 | 3.67 | 30 | 6 | 12710×5430×5690 | 45.8 |
2FLG24140 | 2400 | 14000 | 3.67 | 37 | 8 | 17710×5430×8000 | 67.9 |
2FLG30125 | 3000 | 12500 | 3.2 | 40 | 8 | 16020×6640×6350 | 73 |
2FLG30140 | 3000 | 14000 | 3.2 | 40 | 8 | 16020×6640×8680 | 84.8 |
