Introduction:
Magnetic separation is the process of separating components of mixtures by using a magnet to attract magnetic substances.[1] The process that is used for magnetic separation separates non-magnetic substances from those which are magnetic. This technique is useful for the select few minerals which are ferromagnetic (iron-, nickel-, and cobalt-containing minerals) and paramagnetic. Most metals, including gold, silver and aluminum, are nonmagnetic.

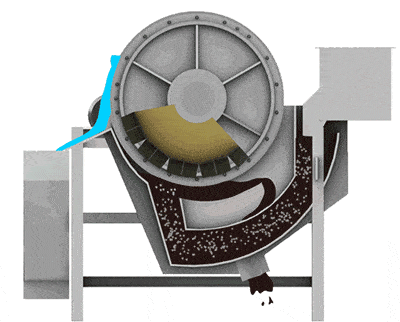

A large diversity of mechanical means is used to separate magnetic materials. During magnetic separation, magnets are situated inside two separator drums which bear liquids. Due to the magnets, magnetic particles are being drifted by the movement of the drums. This can create a magnetic concentrate (e.g., an ore concentrates).
Technical Parameters:
Model | Diameter (mm) | Length of drum (mm) | Capacity (t/h) | Power (kw) | Weight (t) | Dimension-L×W×H (mm) |
CTB612 | 600 | 1200 | 10-20 | 1.1 | 1.5 | 2030×1200×1140 |
CTB618 | 600 | 1800 | 15-30 | 2.2 | 1.8 | 2630×1200×1140 |
CTB718 | 750 | 1800 | 20-45 | 3 | 2.2 | 2690×1380×1330 |
CTB918 | 900 | 1800 | 25-55 | 4 | 2.9 | 2730×1600×1550 |
CTB924 | 900 | 2400 | 35-70 | 4 | 3.6 | 3330×1600×1550 |
CTB1018 | 1050 | 1800 | 40-75 | 5.5 | 4.3 | 2800×1760×1750 |
CTB1024 | 1050 | 2400 | 60-120 | 5.5 | 5.2 | 3200×1760×1750 |
CTB1030 | 1050 | 3000 | 70-150 | 7.5 | 6.3 | 3950×1760×1750 |
CTB1218 | 1200 | 1800 | 60-110 | 5.5 | 5 | 2850×1980×1940 |
CTB1224 | 1200 | 2400 | 70-130 | 7.5 | 6.4 | 3450×1980×1940 |
CTB1230 | 1200 | 3000 | 80-160 | 7.5 | 7.8 | 4050×1980×1940 |
CTB1530 | 1500 | 3000 | 100-180 | 11 | 9.2 | 4230×2300×2350 |
CTB1540 | 1500 | 4000 | 115-220 | 11 | 10.5 | 5230×2300×2350 |
