Introduction:
Floatation machine is applicable for the separation of nonferrous metal and ferrous metals, such as fluorite, talc, copper, lead, zinc, nickel, molybdenum, etc.
Working principal:
The impellers are driven through V belt transmission, which brings centrifugal effect to form the negative pressure. On the one hand, the flotation machine inhales sufficient air to mix with ore slurry; on the other hand, it stirs ore slurry and mix with medication to form the mineralized froth. To adjust the height of flashboard to control the liquid level and make the useful froth scraped by loam board. Each chute can inhale gas, sink magma, separate. No assisting equipments are required, and it must be levelly installed.
It is easy to change the flow chart. The cycling way of magma is very reasonable. It can reduce the impurities to a great extent. There is automatic equipment on the magma surface, easy to adjust. The impeller also owns the upper and lower retroversion blade. The upper one makes the magma cycle upward, while the lower one makes the magma cycle downward.
Technical Data of SF Serials of Floatation Machine:
Model | Cell Volume
(m³) | Impeller diameter
(mm) | Impeller speed
(r/min) | Capacity (m³/min) | Major motor power
(kW) | Scraper motor power （kW） | Weight
(t/cell) |
SF0.37 | 0.37 | 300 | 442 | 0.2-0.4 | 1.5 | 1.1 | 0.4 |
SF0.7 | 0.7 | 350 | 400 | 0.3-1 | 3 | 1.1 | 0.9 |
SF1.2 | 1.2 | 450 | 312 | 0.6-1.2 | 5.5 | 1.1 | 1.4 |
SF2.8 | 2.8 | 550 | 268 | 1.5-3.5 | 11 | 1.1 | 2.2 |
SF4 | 4 | 650 | 235 | 15 | 15 | 1.5 | 2.6 |
SF8 | 8 | 760 | 191 | 30 | 30 | 1.5 | 4.3 |
SF16 | 16 | 850 | 190 | 45 | 45 | 1.5 | 7.4 |
Technical Data of BF Serials of Floatation Machine:
Model | Cell Volume
(m³) | Impeller diameter (mm) | Impeller speed
(r/min) | Capacity (m³/min) | Major motor power (kW) | Scraper motor power （kW） | Weight
(t/cell) |
BF2.8 | 2.8 | 550 | 278 | 0.9-1.1 | 1.4-3 | 11 | 2.1 |
BF4 | 4 | 650 | 235 | 0.9-1.1 | 2.4-4 | 15 | 2.6 |
BF6 | 6 | 700 | 205 | 0.9-1.1 | 3-6 | 18.5 | 3.3 |
BF8 | 8 | 760 | 188 | 0.9-1.1 | 4-8 | 22 | 4.1 |
BF10 | 10 | 760 | 188 | 0.9-1.1 | 5-10 | 22 | 4.5 |
BF16 | 16 | 850 | 195 | 0.9-1.1 | 8-16 | 37 | 8.3 |
BF20 | 20 | 850 | 195 | 0.9-1.1 | 10-20 | 45 | 8.7 |
BF24 | 24 | 920 | 181 | 0.9-1.1 | 12-24 | 45 | 9 |
Technical data -KYF Series of Inflatable Flotation Machine:
Model | Cell Volume (m³) | Impeller diameter
(m) | Impeller speed
(r/min) | Blower pressure (kpa) | Max. air inflow volume
(m3/min) | Capacity
(m3/min) | Major motor power
(kW) | Scraper motor power
(kW) | Weight
(t/cell) |
KYF1 | 1 | 340 | 281 | ≥12.6 | 2 | 0. 2-1 | 4 | 1. 1 | 0. 8 |
KY-2 | 2 | 410 | 247 | ≥14.7 | 2 | 0. 4-2 | 5. 5 | 1. 1 | 1. 5 |
KYF3 | 3 | 480 | 219 | ≥19.8 | 2 | 0. 6-3 | 7. 5 | 1. 5 | 1. 9 |
KYF4 | 4 | 550 | 200 | ≥19.8 | 2 | 1. 2-4 | 11 | 1. 5 | 2. 2 |
KYF8 | 8 | 630 | 175 | ≥21.6 | 2 | 3. 0-8 | 15 | 1. 5 | 4. 2 |
KYF16 | 16 | 740 | 160 | ≥25.5 | 2 | 4. 0-16 | 30 | 1. 5 | 6 |
KYF24 | 24 | 800 | 150 | ≥30.4 | 2 | 4. 0-24 | 30 | 1. 5 | 7. 5 |

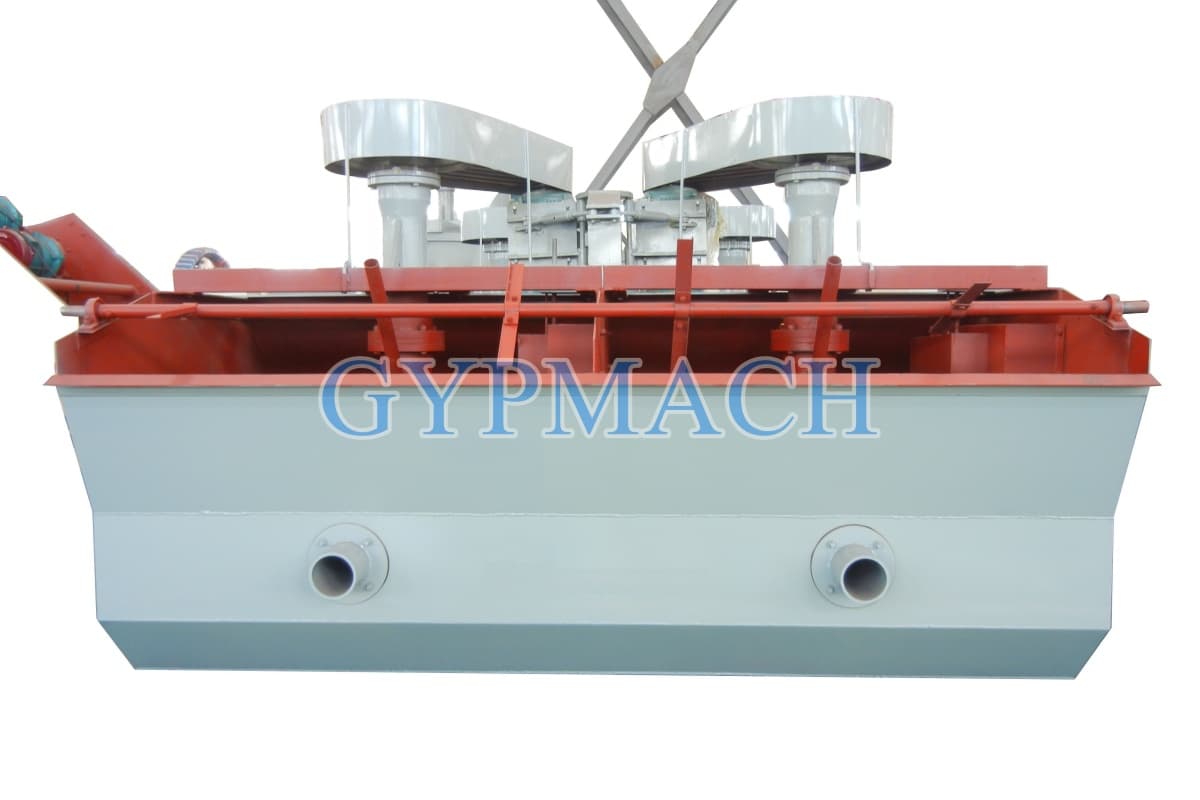

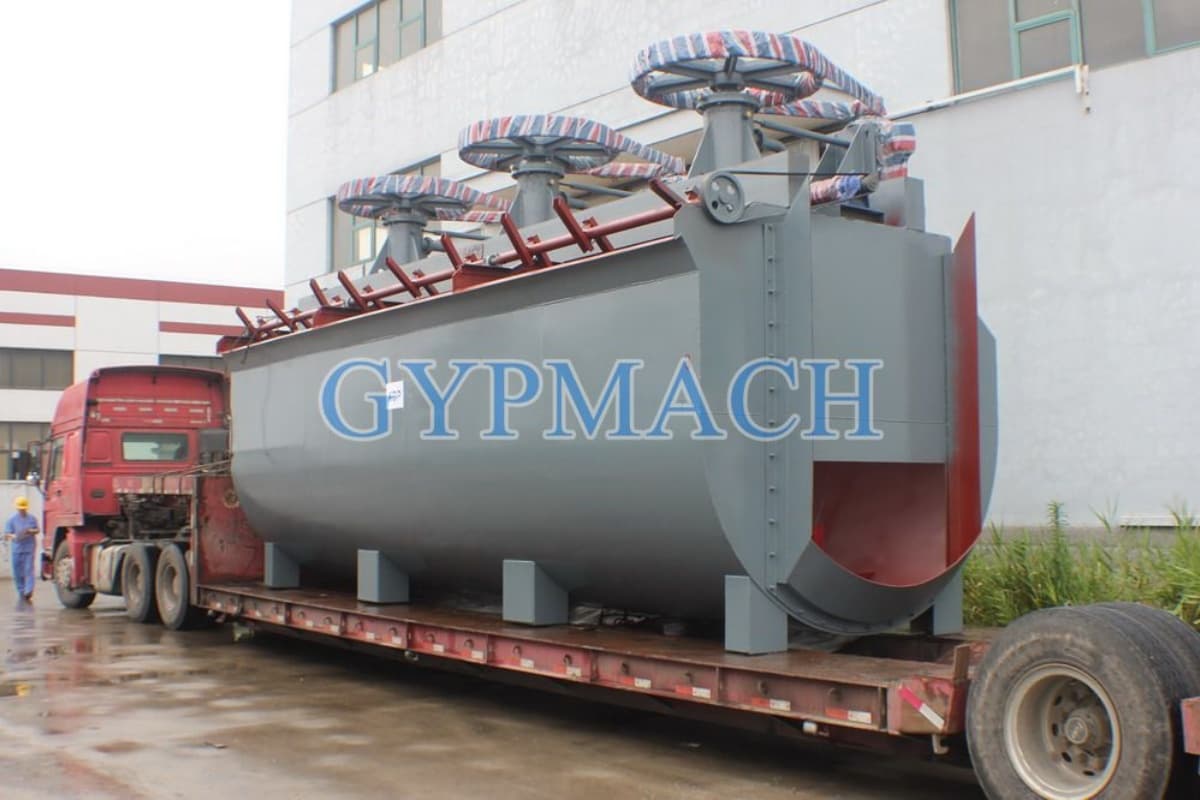

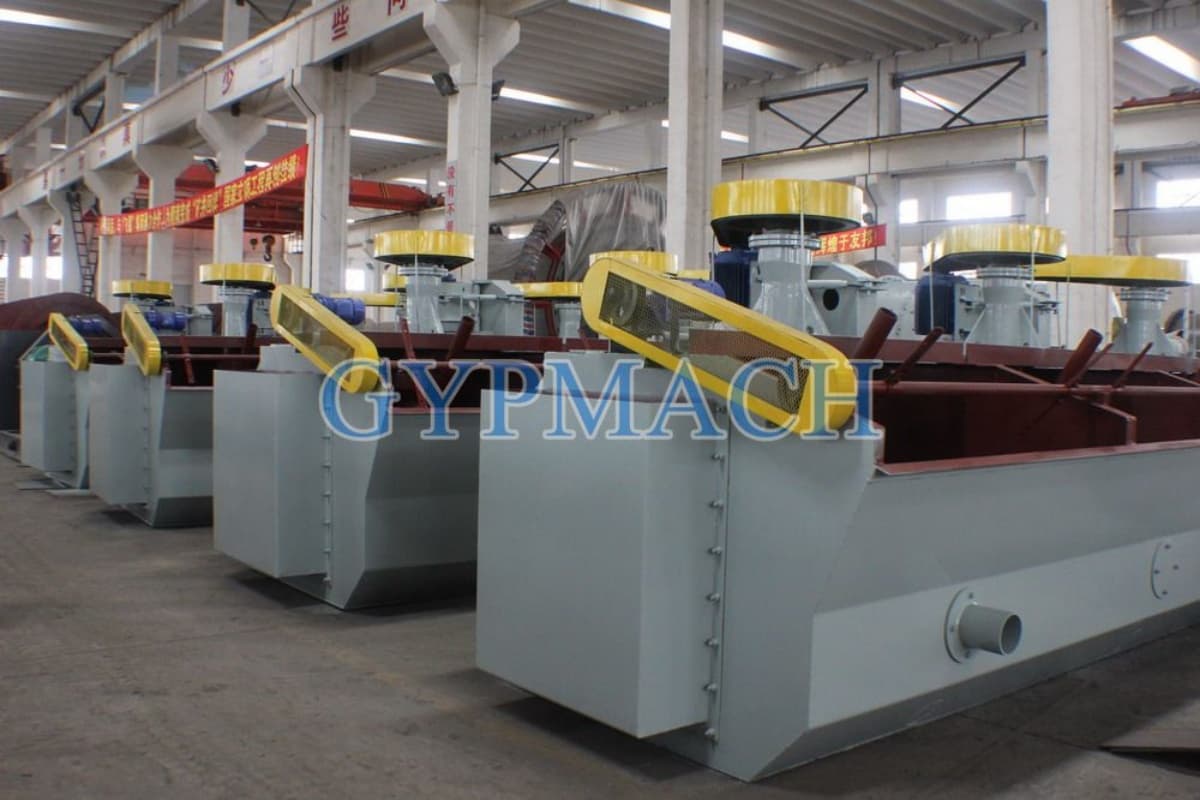

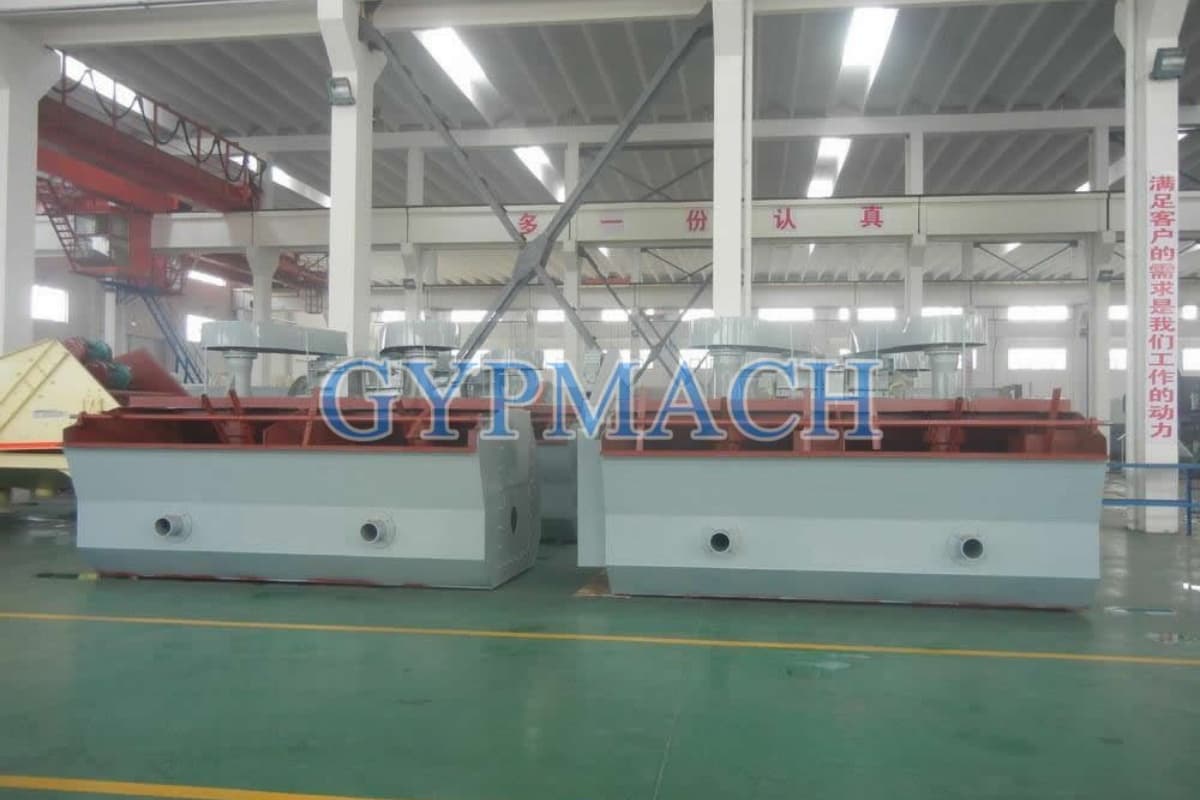

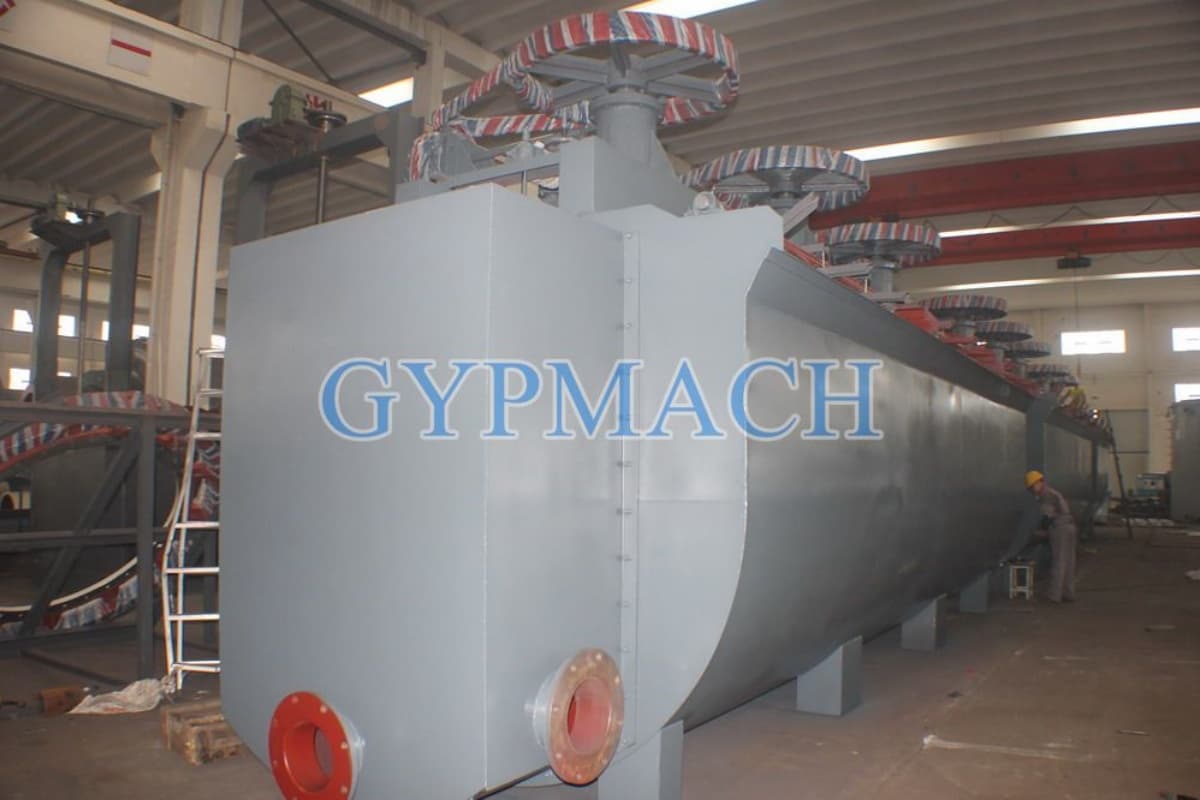

Some of the working site pictures:
