Sand and Powder Making Machine

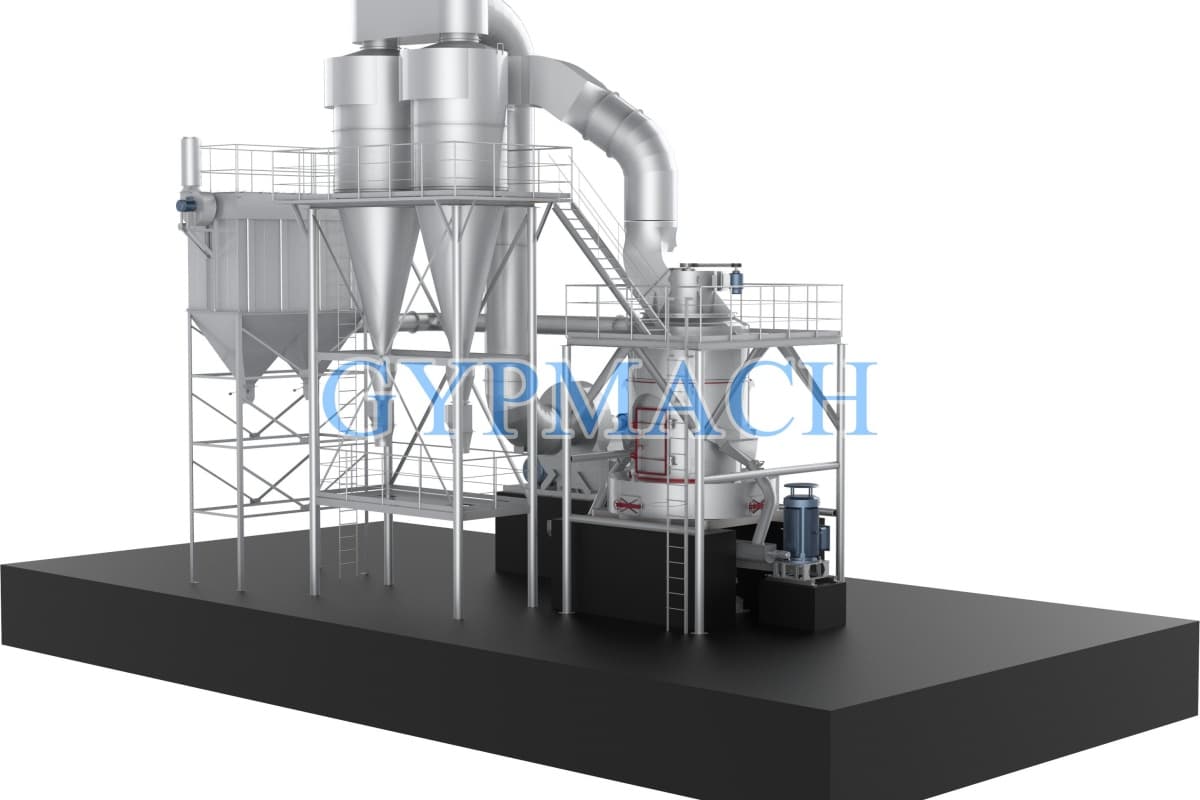

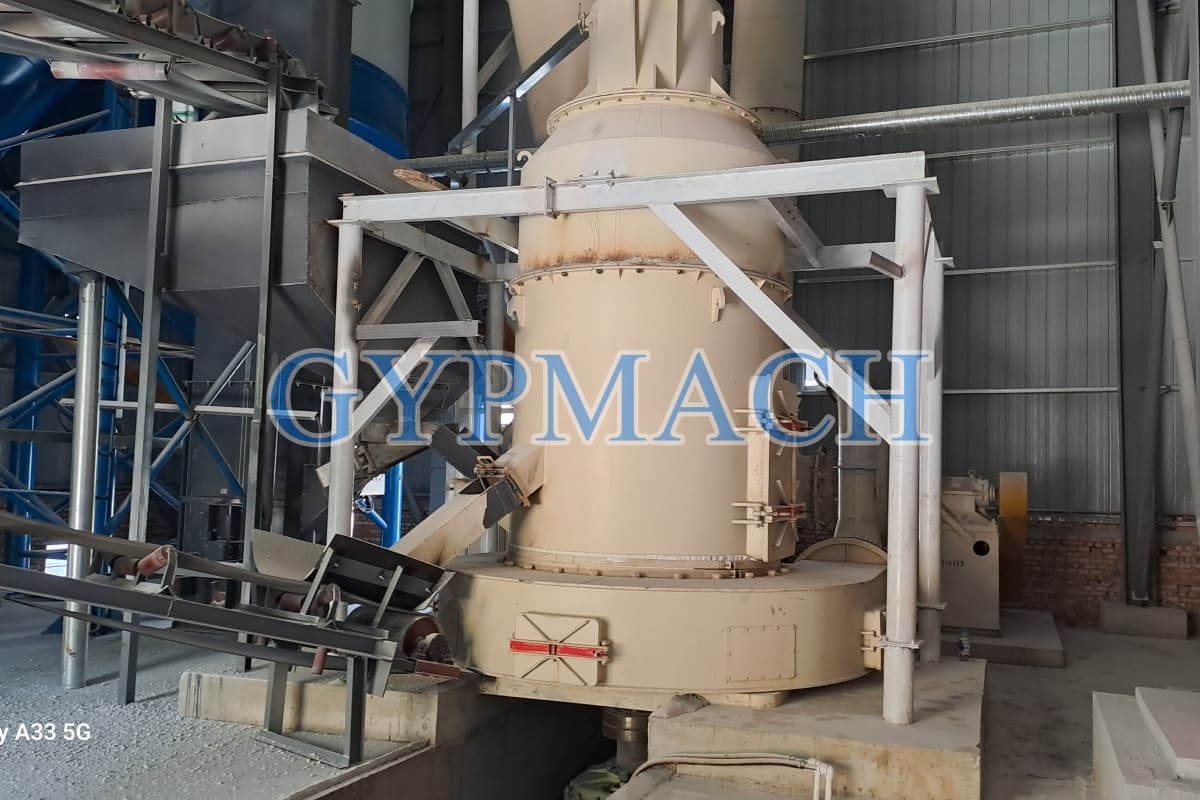

GYPMACH sand and powder integrated machine is a complete set of production line equipment, mainly composed of the main machine, reducer, classifier, fan, feeder, pipeline system, dust collector, electronic control system, etc.










Workflow Diagram of the Sand and Powder Making Machine








The sand-powder intergrated mill system consists of a crusher, elevator (hopper), belt feeder, main machine, reducer, classifier, blower, feeder, piping system, dust collector, electrical control system; sand screening system, etc.


Large raw materials are crushed by a jaw crusher into materials smaller than 30mm, lifted to a storage hopper by a bucket elevator, and then quantitatively fed into the sand-powder mill

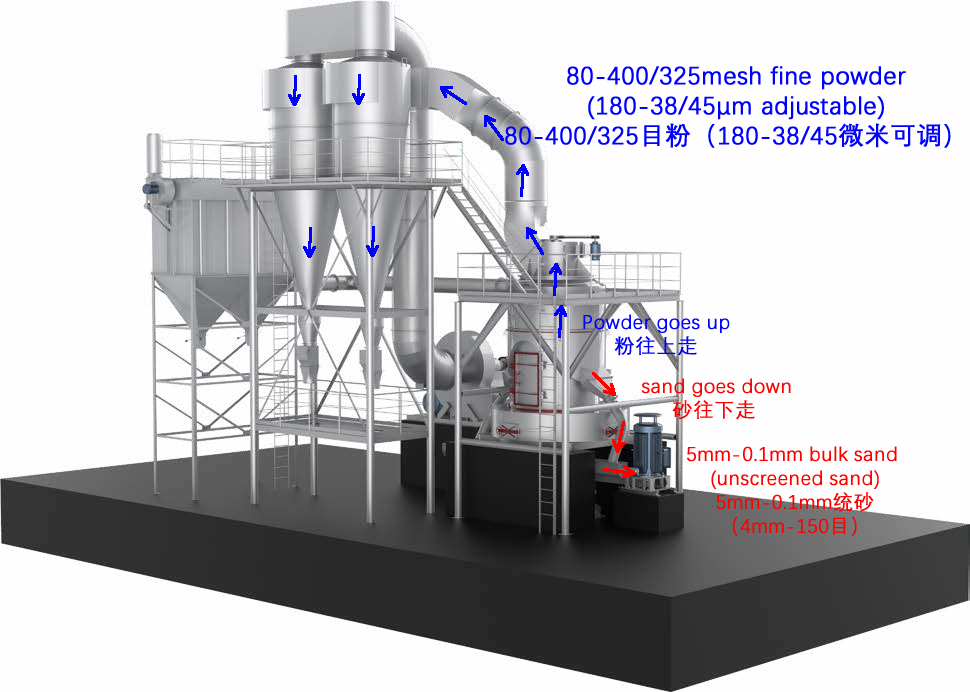

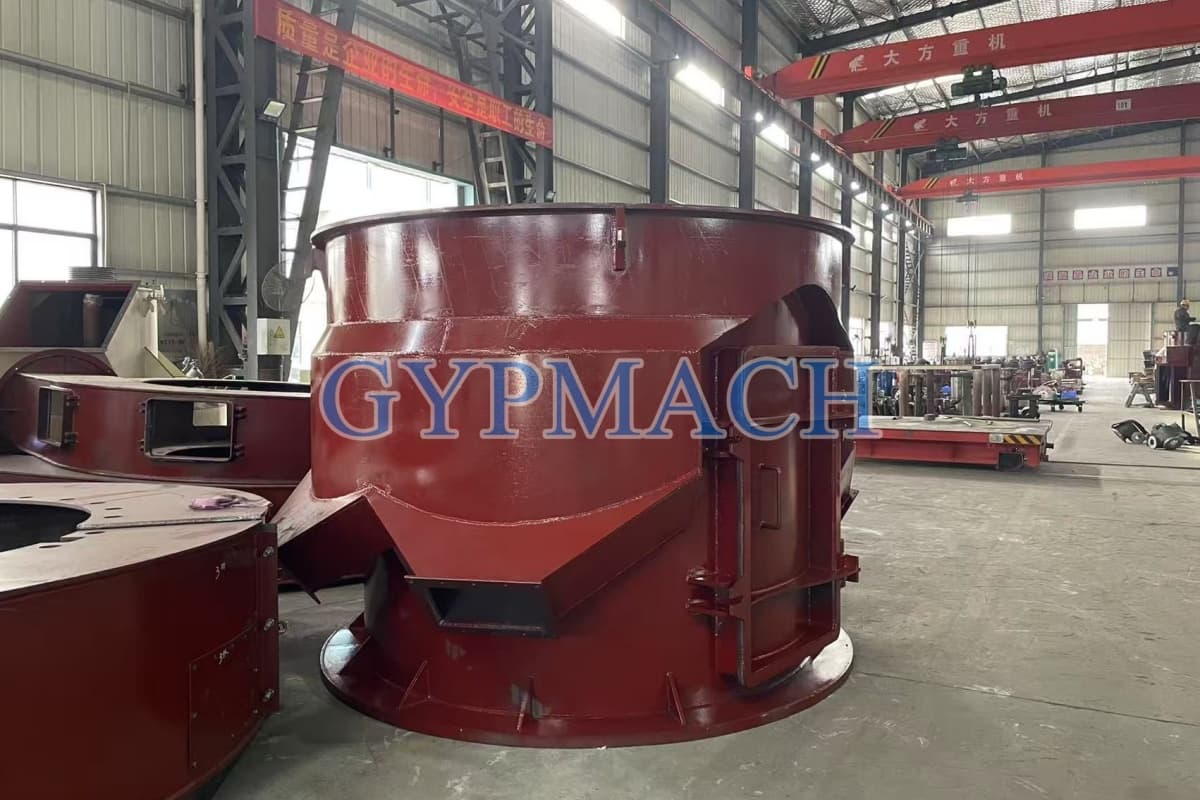

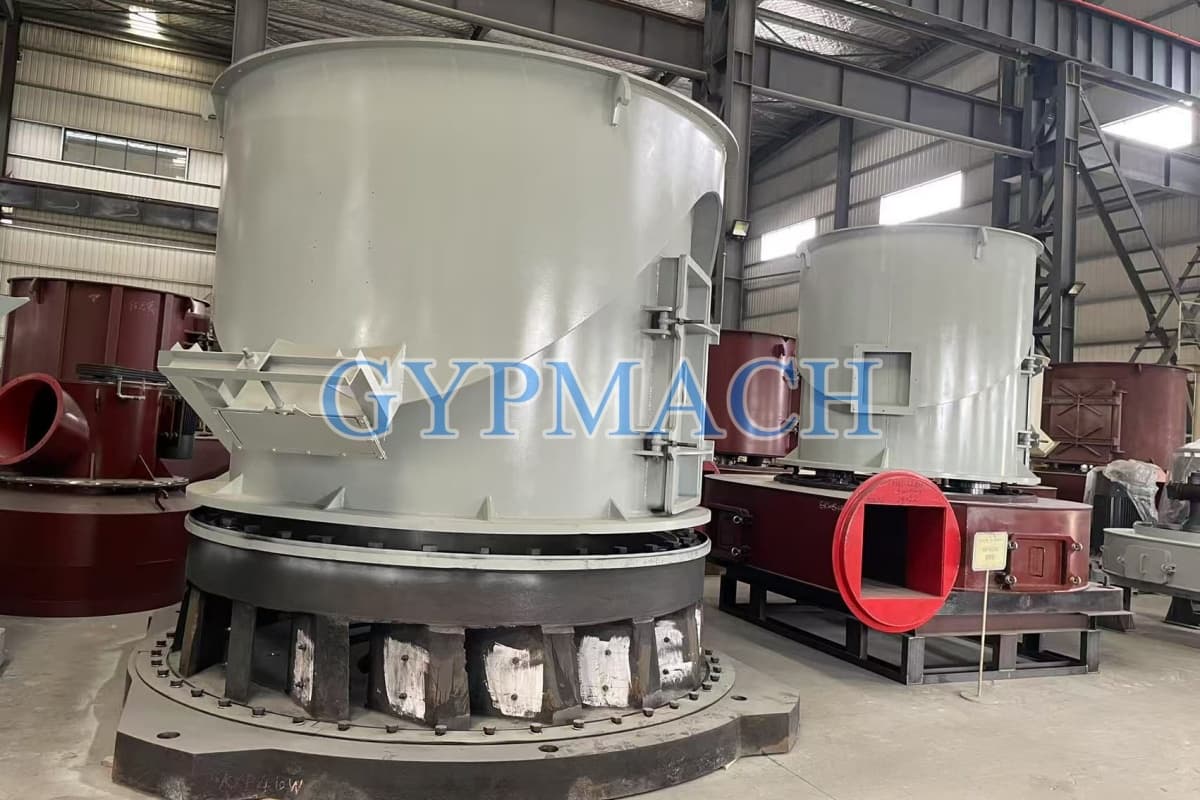

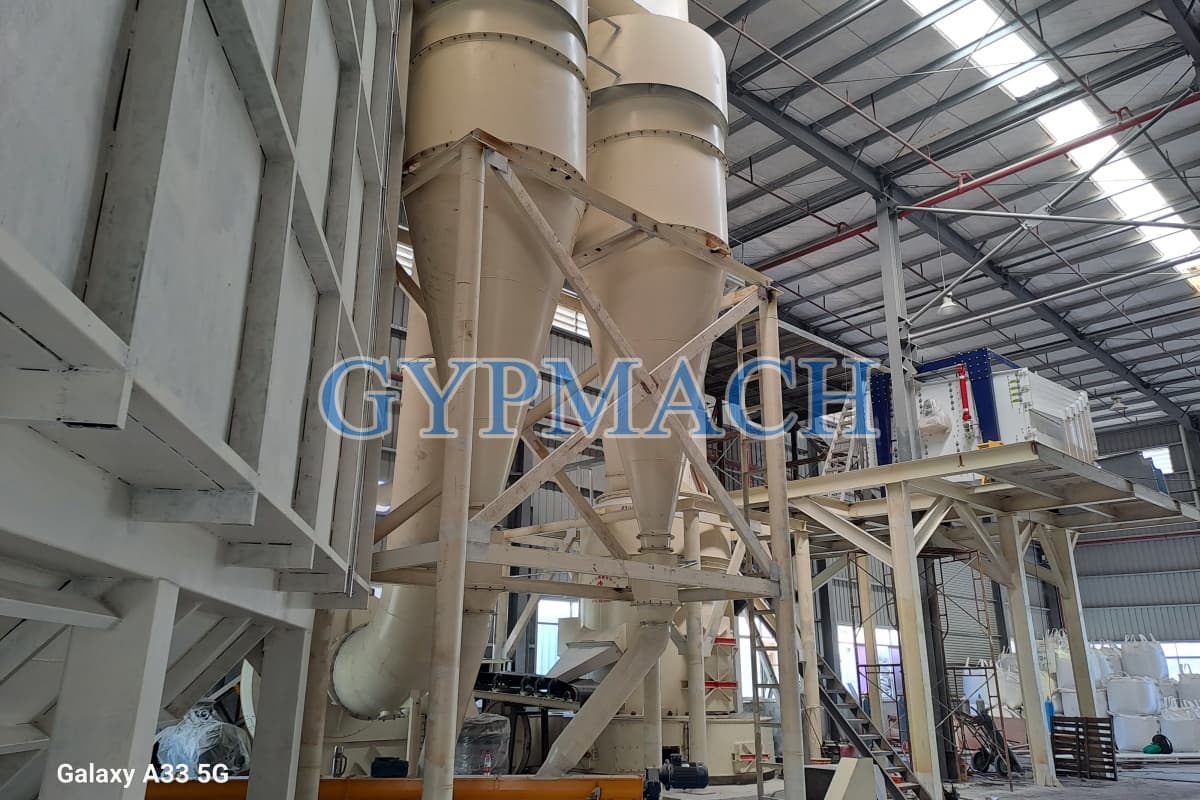

cavity by a belt feeder for grinding. The grinding roller device supported on the star rack inside the main machine rotates around the central axis. The material is lifted by the shovel blade and thrown between the grinding roller and the grinding ring to be impacted and crushed. Under the action of centrifugal force, the grinding roller device swings outward and clings to the grinding ring tightly. The fine powder is blown by the airflow of the blower to the classifier above the main machine for grading and screening. Those that meet the fineness requirements pass through the classifier into the dual cyclone collector. After gas-powder separation, the settled discharge is the finished fine powder.


Sand particles slide out of the main machine along the inner wall slide and are referred to as unified sand (0-5mm). The unified sand is transported to the elevator and sent to the sand screening system for screening to the required gradation (such as: 10-20 mesh, 20-40 mesh, 40-80 mesh, 80-140 mesh). Unwanted coarse sand and fine sand (such as coarser than 10 mesh, finer than 140 mesh) are returned to the hopper.


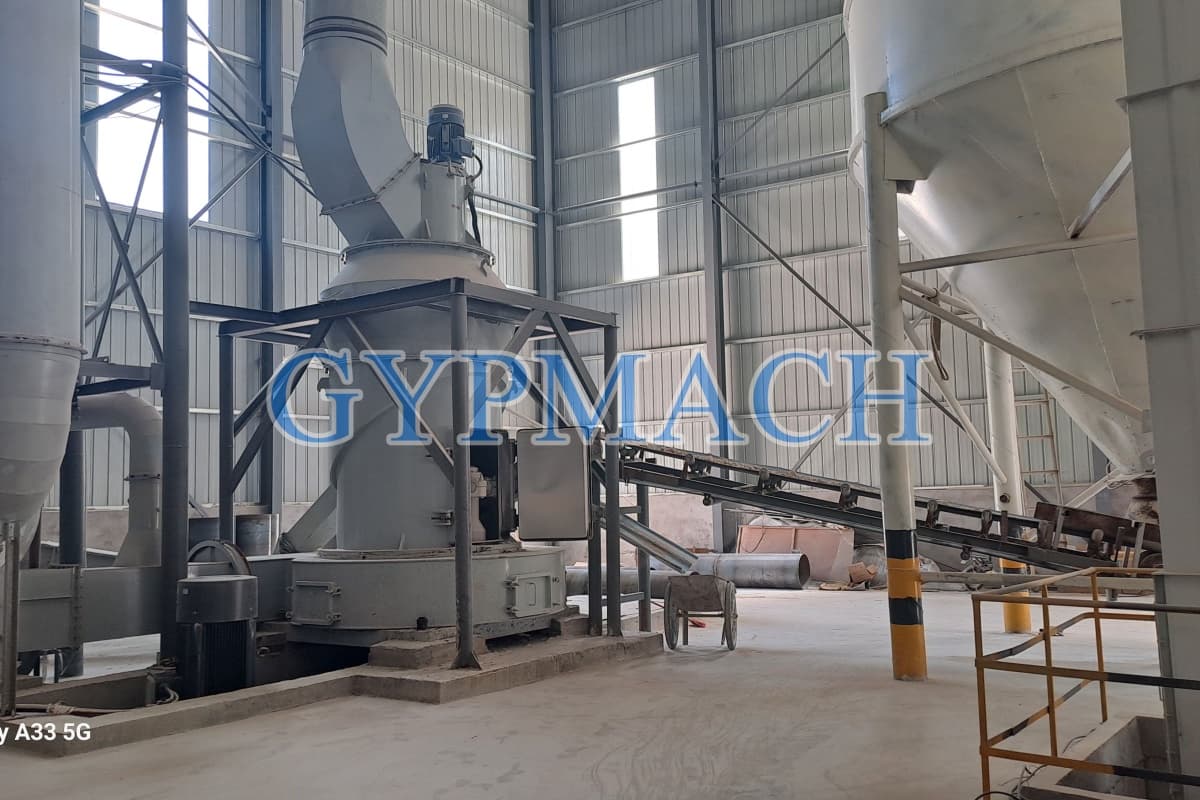

Excess gas is directed into the dust collector through the exhaust pipe, where the fine powder brought in by the exhaust gas is collected. The purified exhaust gas is then discharged, achieving environmental protection production while regulating the balance of system airflow.



Technical Parameters



Model

Capacity of Powder and Sand
 (t/h)

Roller
Qty.

Roller diameter×Height
(mm)

Ring outer ×inner diameter×height
(mm)

Reducer power
(kW)

Blower power
(kW)

Classifier power
(kW)

4R3220

Powder 80-325mesh
(180-45micron) D90

4-1.8

4

320×200

1077×970×200

45

37

15

0-5mm bulk sand

Capacity of bulk sand similar as the power

GM1280

powder 80-325mesh
(180-45micron) D90

7-4

3

370×240

1275×1170×240

55

55

15

0-5mm bulk sand

Capacity of bulk sand similar as the power

5R4125

powder 80-325mesh
(180-45micron) D90

10-5

4

406×250

1388.5×1270×250

90

90

22

0-5mm bulk sand

Capacity of bulk sand similar with the power

GM1500

powder 80-325mesh
(180-45micron) D90

11-5.5

3

450×280

1500×1380×280

110

110

22

0-5mm bulk sand

Capacity of bulk sand similar with the power

　

GM1620A

powder 80-325mesh
(180-45micron) D90

13-7.5

4

450×300

1620×1500×300

160

132

30

0-5mm bulk sand

Capacity of bulk sand similar with the power

　

GM1700

powder 80-325mesh
(180-45micron) D90

9-16

4

510×300

1705×1580×300

185

160

37

0-5mm bulk sand

Capacity of bulk sand similar with the power

　

GM1850

powder 80-325mesh
(180-45micron) D90

18-11

4

510×300

1845×1720×300

200

200

37

0-5mm bulk sand

Capacity of bulk sand similar with the power

　

GM1920

powder 80-325mesh
(180-45micron) D90

19-12

4

600×300

1920×1770×300

220

200

45

0-5mm bulk sand

Capacity of bulk sand similar with the power

　

GM2150

powder 80-325mesh
(180-45micron) D90

21-14

4

600×300

2128×1980×300

250/280

280/315

45

0-5mm bulk sand

Capacity of bulk sand similar with the power

　

GM2500

powder 80-325mesh
(180-45micron) D90

23-16

4

600×300

2500×2300×300

315

280/315

45

0-5mm bulk sand

Capacity of bulk sand similar with the power





2-180mesh Sand Distribution (Material properties will affect the data, for reference only)



Sand size

2-20mesh

20-40mesh

40-60mesh

60-80mesh

80-100mesh

≥100mesh

Proportion

9%

22.18%

24.36%

19.09%

17.27%

8%

Uses of sand: glass production, dry-mix and wet-mix mortar, special mortar (adhesive mortar, crack-resistant mortar, waterproof mortar, tile adhesive, grouting agent, thin-layer masonry, thin-layer plastering, prefabricated supporting mortar, cement-based self-leveling, gypsum self-leveling, high-speed rail grouting mortar, wind power grouting material, grouting material, subway shield mortar, repair mortar, reinforcement mortar, mine slope protection mortar, polymer waterproof mortar, penetrating crystallization waterproof mortar, permeable concrete, hardened floor mortar, machine-sprayed mortar, etc.)
